SuperTIGER Infographic

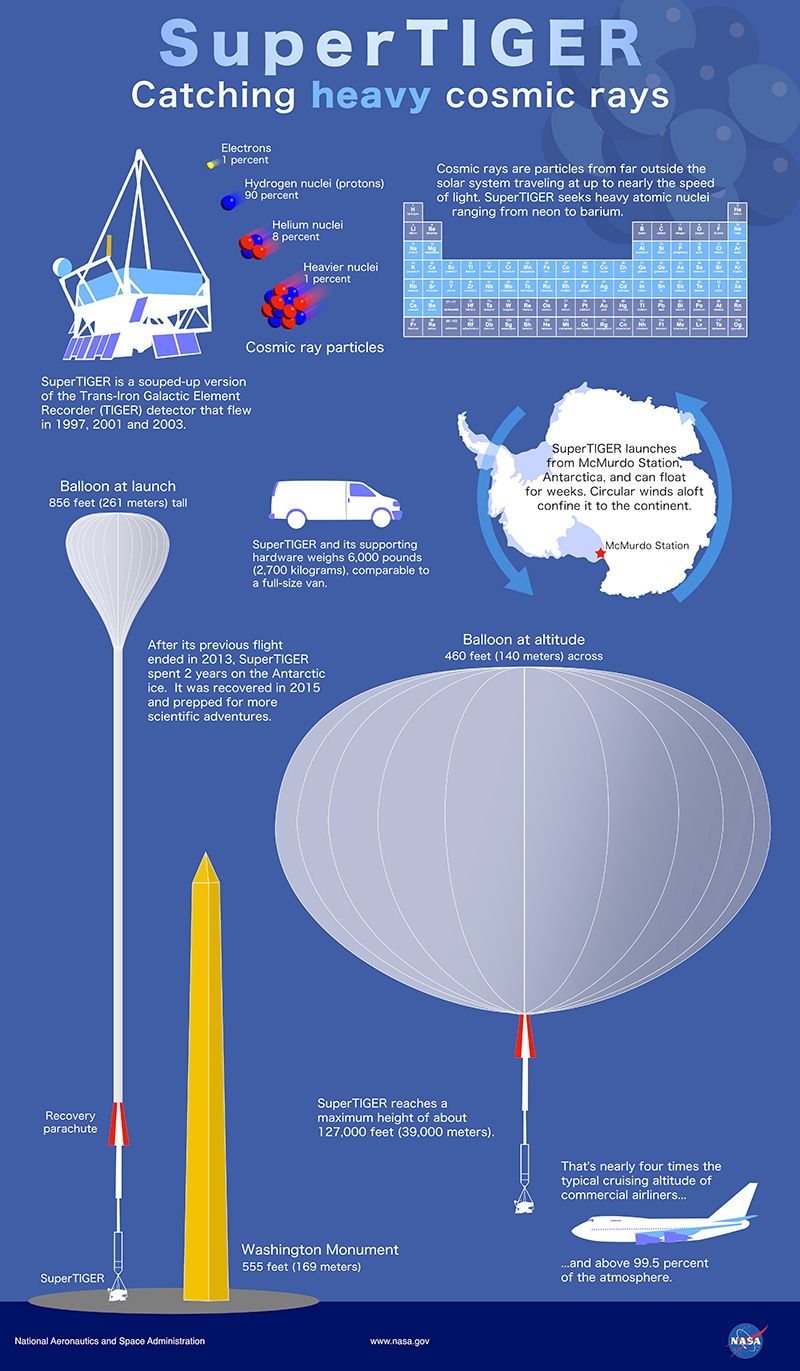

This infographic shows many factoids about the SuperTIGER balloon mission. The poster has the header: “SuperTIGER Catching heavy cosmic rays.” There is a cut-out line drawing of the SuperTIGER payload as if it was dangling from a balloon. Near this is the text, “SuperTIGER is a souped-up version of the Trans-Iron Galactice Element Recorder (TIGER) detector that flew in 1997, 2001, and 2003.” next to that are a series of representations of cosmic rays from an electron (1% of cosmic rays), hydrogen (90%), helium (8%), and heavier nuclei (1%). Next to that is a periodic table of the elements with the elements from neon (atomic #10) to barium (atomic #56) highlighted. This is accompanied by the text, “Cosmic rays are particles from far outside the solar system traveling at up to nearly the speed of light. SuperTIGER seeks heavy atomic nuclei ranging from neon to barium.” Just below the cosmic ray particles and periodic table is a silhouette of a van accompanying the text, “SuperTIGER and its supporting hardware weighs 6,000 pounds (2,700 kilograms), comparable to a full-size van.” A drawing of Antarctica with arrows encircling the continent in a counterclockwise direction is accompanied by the text, “SuperTIGER launches from McMurdo Station, Antarctica, and can float for weeks. Circular winds aloft confine it to the continent.” Just below these items there is a depiction of the balloon at launch, taking up about two-thirds the height of the poster. The line drawing of the balloon at launch includes the inflated portion of the balloon, which is just a small upside down tear-drop at the top, the recovery parachute, and the SuperTIGER payload. With this is the text, “Balloon at launch, 856 feet (261 meters) tall.” The balloon stands next to a line drawing of the Washington Monument, which stands 555 feet (169 meters) tall. Next to this is a depiction of the balloon in flight, with the balloon fully inflated from the top down to the recovery parachute. The text says: “Balloon at altitude, 460 feet (140 meters) across.” Next to the payload drawing is the text, “SuperTIGER reaches a maximum height of about 127,000 feet (39,000 meters).” Near this is a drawing of a commercial jet and the text, “That’s nearly four times the typical cruising altitude of commercial airliners and above 99.5 percent of the atmosphere.”
December 6, 2017
CreditNASA's Goddard Space Flight Center
Historical DateDecember 6, 2017
Language
  • english

Explore this infographic to learn more about SuperTIGER, cosmic rays, and scientific ballooning.

Learn more: https://svs.gsfc.nasa.gov/12783
